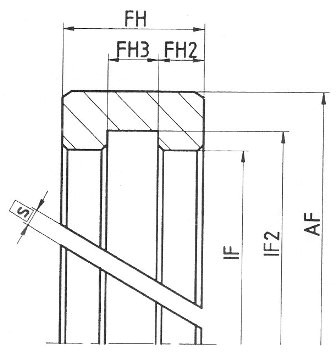

Seal Data Sheet Applies to Profile: F7

  • Material Temperature Max. surface speed Max. pressure
    Cast Nylon -50 'C ... +100 'C 4 m/s 25 N/mm2
    PTFE -200 'C ... +200 'C 4 m/s 1.5 N/mm2
    PTFE (glmos 2 filled) -200 'C ... +200 'C 4 m/s 3 N/mm2
    PTFE (40% bronze filled) -200 'C ... +200 'C 4 m/s 3 N/mm2

    The stated operation conditions represent general indications. It is recommended not to use all maximum values simultaneously. Surface speed limits apply only to the presence of adequate lubrication film.

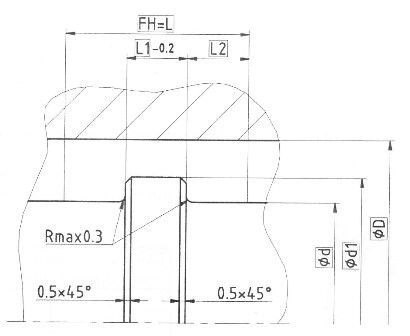

  • Seal Housing
